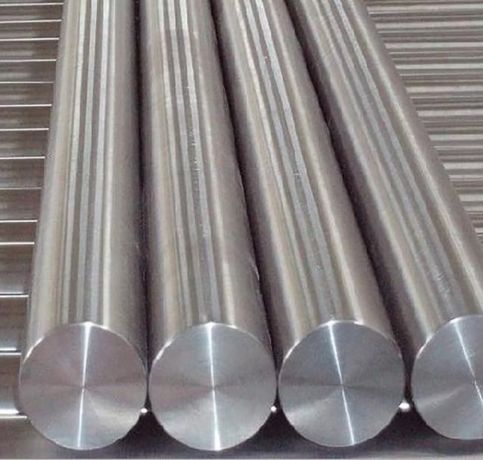

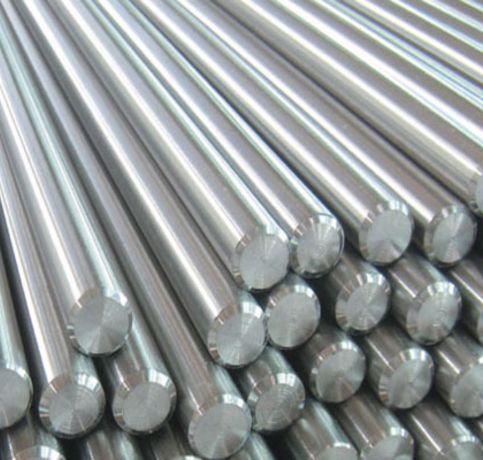

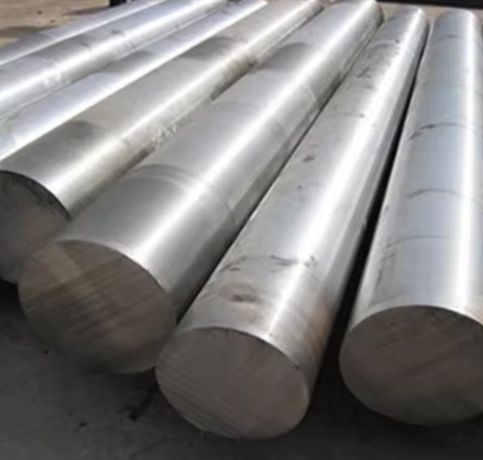

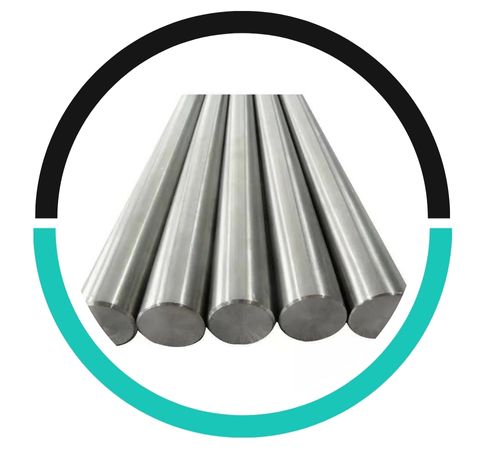

Al Summan Metals, a highly regarded manufacturer and supplier based in Dubai, UAE, focuses on premium Hastelloy Round Bars that are designed to perform in exceptionally corrosive and high-temperature environments. These bars are renowned for their outstanding resistance to oxidation, pitting, and stress-corrosion cracking, which makes them ideal for sectors such as chemical processing, marine applications, and aerospace. Al Summan Metals prioritizes precision in its manufacturing process, guaranteeing dimensional accuracy and compliance with international standards, producing Hastelloy Round Bars that offer superior strength, durability, and reliability for demanding applications that require both mechanical stability and corrosion resistance.
The main components of Hastelloy Round Bars are nickel, molybdenum, and chromium, together with small quantities of iron, tungsten, cobalt, and manganese. This distinctive combination delivers exceptional resistance to powerful oxidizing and reducing agents, as well as notable stability when subjected to thermal and mechanical stress. Regarding mechanical characteristics, these bars deliver a tensile strength of about 690 MPa and a yield strength of roughly 283 MPa, together with excellent ductility and toughness. Their unique alloy makeup ensures durable performance even within the toughest and most corrosive industrial settings.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
| STANDARD | UNS | WNR. | JIS | GOST | EN | OR |
|---|---|---|---|---|---|---|
| Hastelloy C276 | N10276 | 2.4819 | NW 0276 | ХН65МВУ | NiMo16Cr15W | ЭП760 |
| Hastelloy C22 | N06022 | 2.4602 | NW 6022 | – | NiCr21Mo14W | – |
| Hastelloy B2 | N10665 | 2.4617 | – | – | – | – |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
|---|---|---|---|---|---|
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Hastelloy round bars are compatible with particular heat treatment methods, like annealing, to improve their mechanical characteristics and reduce internal stress. That said, the precise procedure varies according to the alloy grade and the intended use.
Guarantee the quality of Hastelloy Round Bars by procuring them from trustworthy suppliers who comply with industry benchmarks such as ASTM or ASME, and confirm certifications like Mill Test Reports (MTR). Also, carry out non-destructive testing (NDT) and check for dimensional precision and surface finish.
Yes, we supply Hastelloy Round Bars in both standard and customized sizes and finishes to suit your particular project needs. For further information, mail us on sales@alsummanmetals.ae
Hastelloy Round Bars are widely applied in sectors that handle harsh chemicals and severe environments. They work especially well for producing parts in chemical processing facilities, heat exchangers, marine equipment, pollution control systems, and flue gas scrubbers. Because they offer outstanding resistance to acids such as hydrochloric, sulfuric, and phosphoric, they are perfect for reactors, pressure vessels, and evaporators. In addition, Hastelloy Round Bars serve the aerospace, pharmaceuticals, and power generation industries. Their capacity to retain strength and withstand corrosion under heavy stress guarantees reliable and durable performance in challenging applications.
We offer products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
