These Hastelloy C276 Bars and Rods consist mainly of nickel, molybdenum, chromium, and iron, which combine to deliver outstanding corrosion resistance and mechanical strength. They demonstrate excellent tensile strength, hardness, and stability over a wide temperature range. Hastelloy C276 preserves its structural integrity even when subjected to thermal cycling and mechanical stress, successfully resisting pitting, stress corrosion cracking, and oxidation. Owing to its distinctive composition, this alloy ensures lasting durability, exceptional chemical resistance, and dependable performance in extremely corrosive environments. The combination of high strength and corrosion resistance it offers makes it perfect for essential applications in demanding chemical, marine, and high-temperature industrial processes.
| Standard | ASTM B574, ASME SB574 |

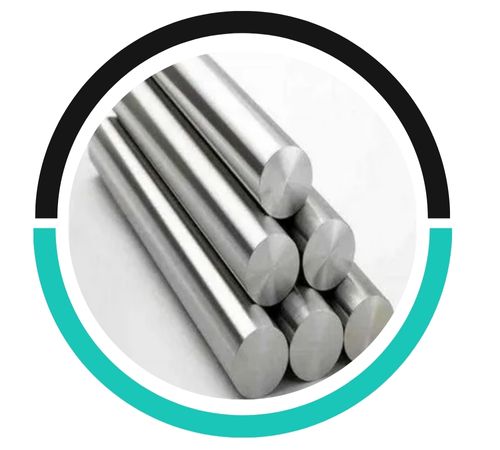

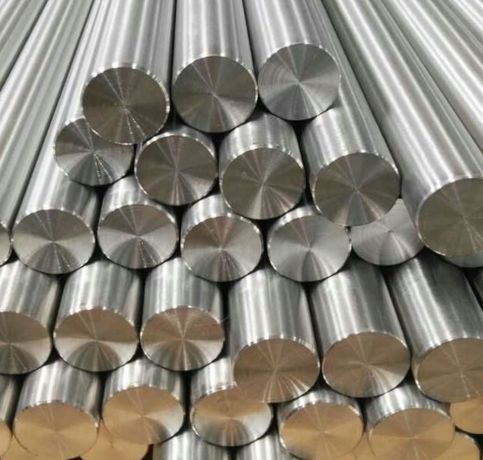

| Round Bar Size | 3mm~ 800mm |
| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

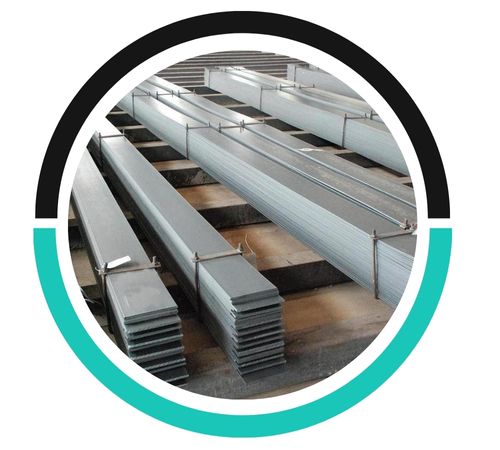

| Flat Bar Size | 2mm ~ 100mm |

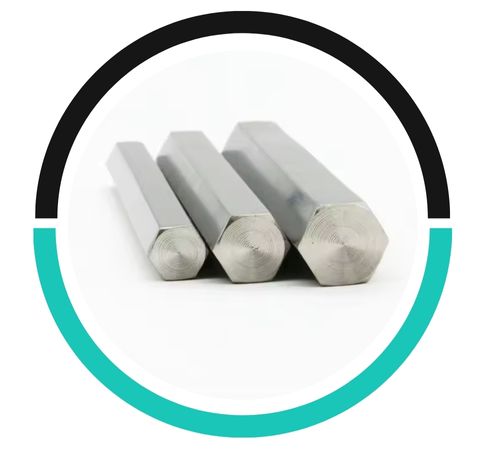

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | Mo | Cr | Fe | W | Co | Mn | C | V | P | S | Si |
| Hastelloy C276 | Bal | 15 – 17 | 14.5 – 16.5 | 4 – 7 | 3 – 4.5 | 2.5 max | 1.0 max | 0.01 max | 0.35 max | 0.04 max | 0.03 max | 0.08 ma |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.89 g/cm33 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40% |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C276 | 2.4819 | N10276 | ХН65МВУ | – | NW 0276 | ЭП760 | NiMo16Cr15W |
Yes, Hastelloy C276 bars can be tailored to satisfy particular size and length specifications. This adaptability enables customized solutions across a range of industrial applications.
Hastelloy C276 bars and rods deliver outstanding performance in high-temperature settings, retaining their strength and their ability to resist oxidation. They work perfectly for uses subjected to elevated temperatures, including chemical processing and power generation.
Hastelloy C276 Bars and Rods are used across a range of industries that require materials able to withstand aggressive corrosive and high-temperature environments. They are commonly applied in chemical processing for reactors, heat exchangers, and piping systems. Within the petrochemical and marine industries, Hastelloy C276 serves in valves, pumps, and equipment exposed to seawater. This adaptable alloy is also a strong fit for power generation, environmental control systems, and a variety of industrial equipment.






We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Summan Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
