Al Summan Metals, a well-regarded manufacturer and supplier based in Dubai, UAE, focuses on premium-grade Hastelloy C22 Bars and Rods engineered to deliver exceptional corrosion resistance and reliable performance under high-temperature conditions. These bars and rods are designed to withstand highly aggressive chemical environments, encompassing both oxidizing and reducing media, which makes them ideal for use in chemical processing, marine, and petrochemical industries. Al Summan Metals prioritizes precision manufacturing, guaranteeing dimensional accuracy and adherence to international quality standards, producing Hastelloy C22 Bars and Rods that provide strength, durability, and enduring reliability for essential industrial operations.
The composition of Hastelloy C22 Bars and Rods consists mainly of nickel, molybdenum, and chromium, with minor quantities of iron, tungsten, and cobalt. This distinctive combination delivers outstanding resistance to pitting, crevice corrosion, and stress-corrosion cracking, even within the harshest chemical settings. From a mechanical standpoint, these bars and rods offer a tensile strength of roughly 690 MPa and a yield strength of nearly 275 MPa, together with superb ductility, toughness, and thermal stability. Their carefully balanced alloy makeup ensures dependable performance under severe chemical and elevated-temperature conditions.
| Standard | ASTM B574, ASME SB574 |

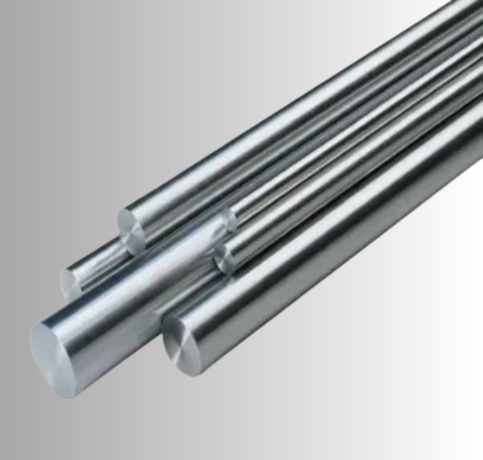

| Round Bar Size | 3mm~ 800mm |

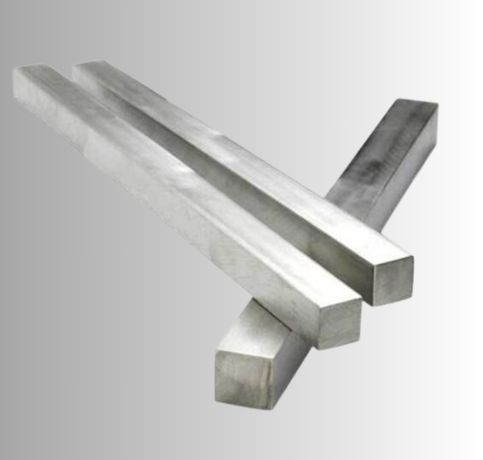

| Square Bar Size | 4mm* 4mm ~100mm* 100mm |

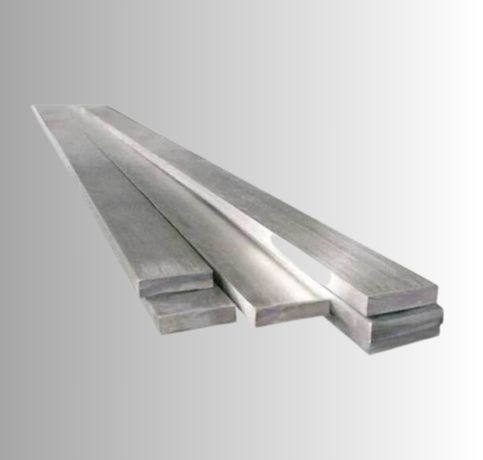

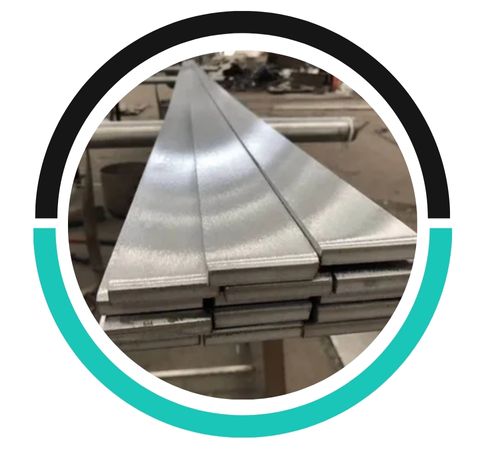

| Flat Bar Size | 2mm ~ 100mm |

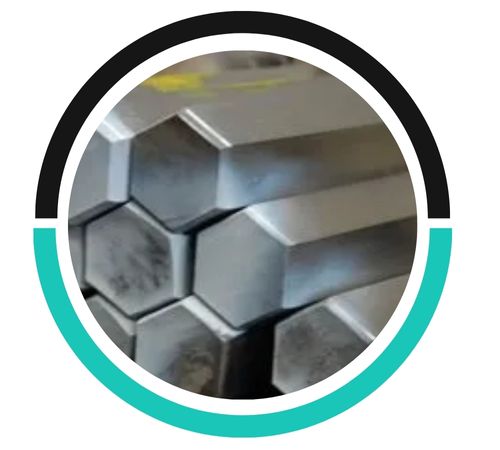

| Hex Bar Size | 2mm ~ 100mm |
| Angle Size | 3mm* 20mm* 20mm~ 12mm* 100mm* 100mm |
| Thickness | 50 mm to 6000 mm Long |
| Length | 1 To 6 Meters, Custom Cut Length |
| Form | Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc |
| Grade | Ni | C | Cr | Co | Fe | Mn | Mo | P | Si | S | W | V |
| Hastelloy C22 | Bal | 0.010 max | 20 – 22.5 | 2.5 max | 2 – 6 | 0.50 max | 12.5 – 14.5 | 0.02 max | 0.08 max | 0.02 max | 2.5 – 3.5 | 0.35 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | OR | EN |
| Hastelloy C22 | 2.4602 | N06022 | – | – | NW 6022 | – | NiCr21Mo14W |
| ALLOY C-22 (Ni/22Cr/13Mo/3Fe/3W) / INCONEL 622/C-22 Round Bar | Dimension |
|---|---|
| cold drawn, solution annealed | Dia=16.0 mm, Weight=1.75 kg/m |
| hot worked, solution annealed, peeled | Dia=20.0 mm, Weight=2.6 kg/m |
| hot worked, solution annealed, peeled | Dia=25.4 mm, Weight=4.5 kg/m |
| hot worked, solution annealed, peeled | Dia=30.0 mm, Weight=6.14 kg/m |
| hot worked, sol annealed, peeled | Dia=38.1 mm, Weight=10.1 kg/m |
| extruded, machined, solution annealed | Dia=45.0 mm, Weight=13.15 kg/m |
| hot worked, solution annealed, peeled | Dia=50.8 mm, Weight=18.0 kg/m |
| extruded, machined, solution annealed | Dia=70.0 mm, Weight=35.0 kg/m |
| solution annealed, peeled | Dia=82.55 mm, Weight=47.6 kg/m |
| hot worked, solution annealed, peeled | Dia=101.6 mm, Weight=72.1 kg/m |
| forged, solution annealed, peeled | Dia=115.0 mm, Weight=89.4 kg/m |
| forged, solution annealed, peeled | Dia=130.0 mm, Weight=113.9 kg/m |
| forged, solution annealed, peeled | Dia=150.0 mm, Weight=152.15 kg/m |
| forged, turned | Dia=165.1 mm, Weight=187 kg/m |
Yes, Hastelloy C22 Bars offer excellent corrosion resistance, especially against pitting, crevice corrosion, and stress corrosion cracking under severe conditions. They perform exceptionally well in withstanding acids, oxidizing agents, and chloride-induced corrosion.
Yes, Hastelloy C22 rods can be tailored in both size and length to fulfill particular industrial needs. Producers frequently provide customized dimensions to accommodate a variety of applications.
Hastelloy C22 bars deliver outstanding performance in high-temperature settings thanks to their excellent oxidation resistance and thermal stability. They retain their strength and corrosion resistance even under extreme conditions.
Hastelloy C22 Bars and Rods are widely applied in sectors that require materials able to endure harsh corrosion and thermal stress. They are especially well-suited to producing heat exchangers, reactors, piping systems, pumps, and valves within chemical processing plants. Beyond that, these bars and rods serve in marine and offshore equipment, pollution control systems, and pharmaceutical machinery thanks to their outstanding resistance to strong acids, oxidizing agents, and chlorides. Offering superb machinability, weldability, and a long service life, Hastelloy C22 Bars and Rods are a reliable option for demanding industrial and engineering applications.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
